MODEL # 4900W
The Mobile Weld Station is a portable welding fume extraction and filtration system designed to capture and remove particulates and VOCs generated by the welding process. Its patented non-venting recirculation design utilizes a custom combination of high-efficiency particulate filters along with activated carbon and potassium permanganate filters engineered specifically for welding fumes. When used with its attached curtain enclosure system, the Mobile Weld Station becomes a complete portable welding booth — combining fume extraction, filtration, and weld curtain enclosure in one mobile unit. The top curtain is constructed of 20 MIL clear flame-resistant PVC, and the side curtains are 14 MIL flame-resistant vinyl UV-protective welding curtain material that is oil, water, mildew, and spark resistant.
Product Overview
Weld Fume Extraction, Anywhere

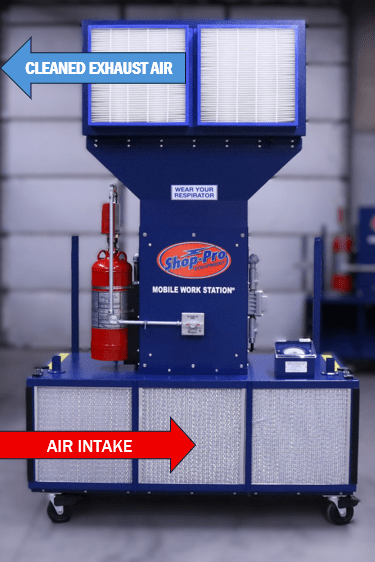

The Mobile Weld Station is the most versatile and flexible welding booth on the market. Its patented non-venting recirculation design means you eliminate the need for costly ventilation modifications or air make-up systems. By using cleaned, recirculated air, you reduce energy costs by utilizing your shop’s existing heated or cooled air, while removing welding fumes at the source.
The unit provides a mobile solution to weld fume extraction, allowing you to bring filtration to the work rather than transporting parts to a fixed ventilated area. This increases productivity and adds flexibility to your welding operations.

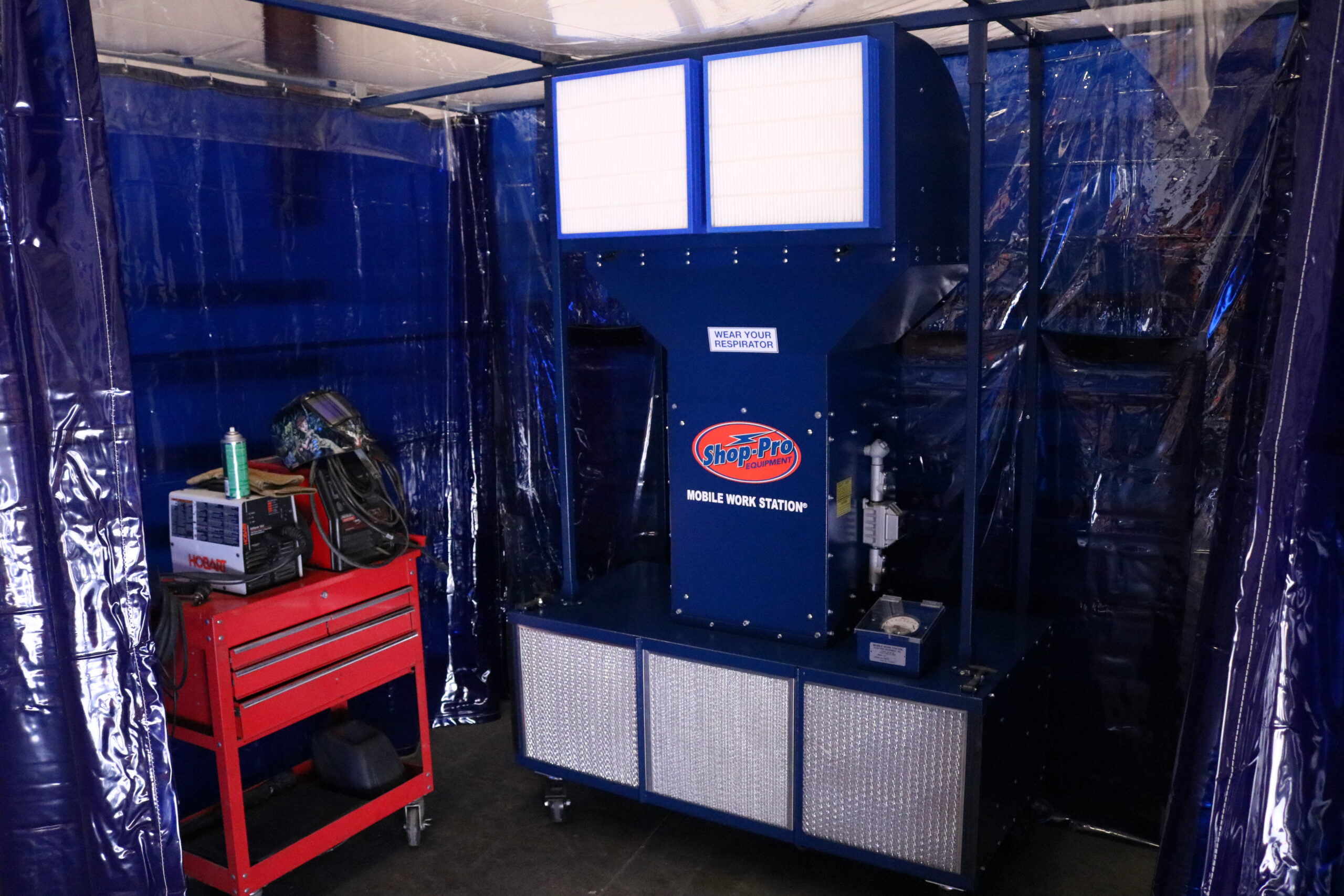

Complete Portable Welding Booth
When used with its attached curtain enclosure system, the Mobile Weld Station becomes a complete portable welding booth — fume extraction, filtration, and UV-protective weld curtain enclosure in one mobile unit. The top curtain is 20 MIL clear flame-resistant PVC for visibility. Side curtains are 14 MIL flame-resistant vinyl UV-protective welding curtain material that is oil, water, mildew, and spark resistant.
Welding-Optimized Filtration
The Mobile Weld Station uses a custom combination of filters designed specifically for welding fumes: high-efficiency extended surface filters for particulate capture, granular activated carbon and potassium permanganate filters for VOC and fume compound removal, and aluminum mesh spark arrestor filters for spark containment. This specialized filtration system effectively captures and removes the harmful compounds specific to welding fumes.
